Silicone Rubber Hollow Fiber Membrane Module “NAGASEP”
for advanced operations of gas, vapor and solution

NAGASEP is…

nagasep
nagasep
nagasep
nagasep

NAGASEP is a functional gas separation module which made aggregate of ultrafine Silicone-membrane Hollow-fiber.
NAGAYANAGI’s Silicone-membrane Hollow-fiber is high dimensional accuracy by own technology.
NAGASEP can be applied in many fields such as gas separation, liquid supply or liquid degassing.

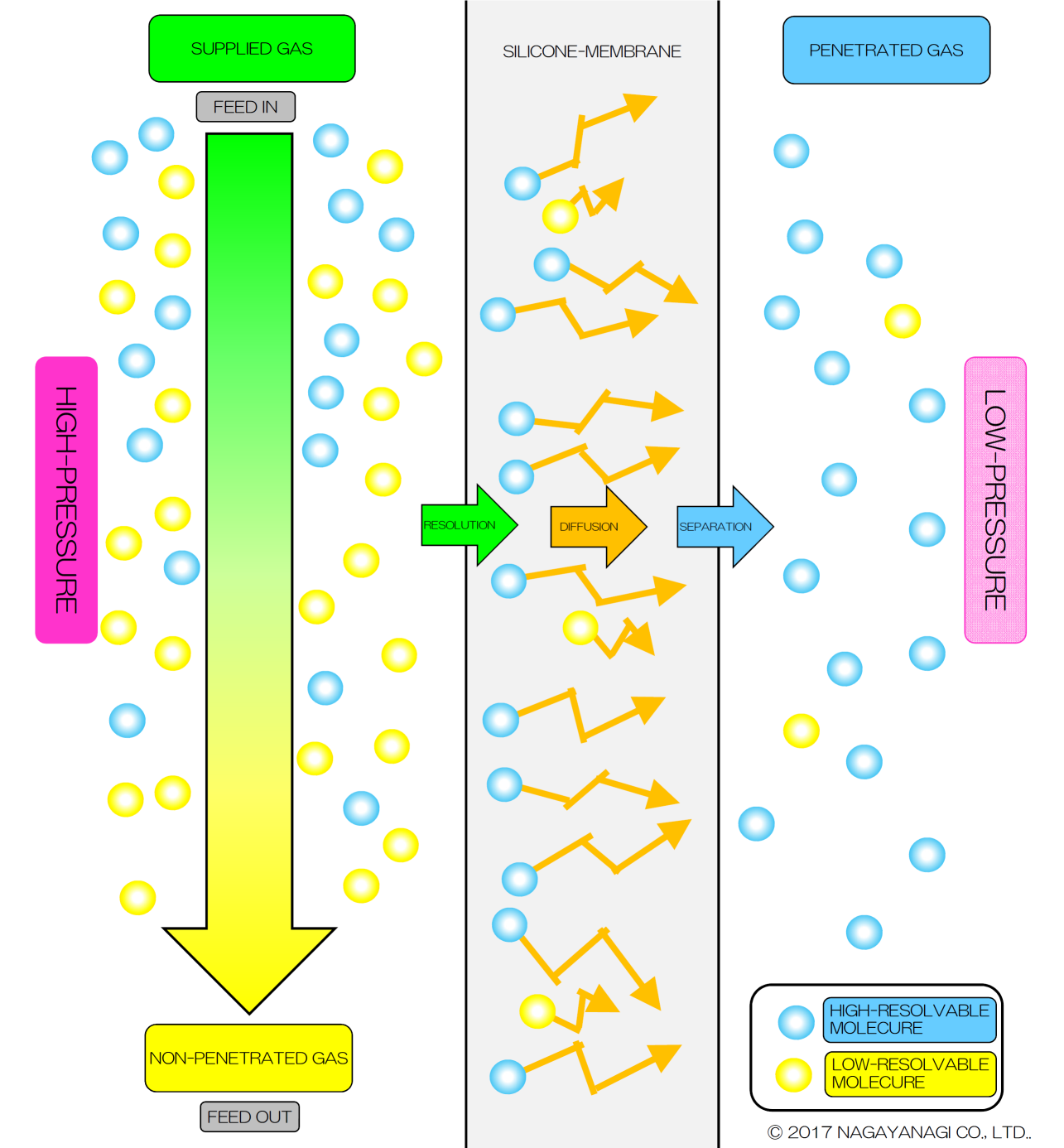

NAGASEP utilize the selective permeability of silicone.
Silicone is the best to permeate gases among polymers.
Silicone has features such as heat resistance, chemical resistance, inert, etc.

Contact Us

Information on NAGASEP

solvent resistance
  • NAGASEP is hydrophobic and excellent in selective permeability of organic matter.
  • NAGASEP is resistant to organic solvents.
  • NAGASEP can separate and recover VOC(volatile organic compounds) from wastewater and mixed gas.
heat-resistance
  • NAGAYANAGI’s Silicone-membrane Hollow-fiber is heat-resistance up to 200°C
  • NAGASEP can be autoclave sterilize.
Long life application
  • Silicone is unaffected by UV(ultraviolet)-rays and ozone.
  • NAGAYANAGI’s Silicone-membrane Hollow-fiber don’t clog, because it is non-porus.
Compactness
  • Minimum size of our Silicone-membrane Hollow-fiber thickness is 0.02mm.
  • It is the thinnest among Silicone-membrane Hollow-fiber.
  • You can reduce the size/volume of the equipment.
Customerization and special tuning
  • NAGAYANAGI’s Silicone-membrane Hollow-fiber is excellent in flexibility. => You can weave like cloth.
  • NAGAYANAGI can design according to the application.

Example of Applications

One side of the membrane; Pour gas or mixtures of liquid.
The other side; Pressurize with gas or decompress with a vacuum pump.

Environment
  • Recovery of VOC(volatile organic compounds) in the atmosphere.
  • Recovery of alcohol from alternative fuel by pervaporation.
  • Recovery of organic solvent in liquid by pervaporation.
  • Separate and recovery of specific gas generated in the manufacturing process.
Medical
  • Artificial lung.
  • Gas exchanger for animal cell culture (O2 supply, CO2 emission).
  • Deaerator of blood analysis equipment (Defoaming of test solution / cleaning solution).
  • Manufacture of Pharmaceutical-microsphere.
Food / Drink, Water purification
  • Supplying oxygen to the Fermentation-liquor or brewing vinegar and liquor Culture of Chlorella.
  • Concentrate atmospheric CO2 (For House cultivation, plant factory).
  • Aerobic microbial treatment (Wastewater treatment).
Analytical instruments
  • Supplying oxygen to the Fermentation-liquor or brewing vinegar and liquor Culture of Chlorella.
  • Concentrate atmospheric CO2 (For House cultivation, plant factory).
  • Aerobic microbial treatment (Wastewater treatment).

* NAGAYANAGI design NAGASEP according to customer’s request.

Contact Us

The Specification of NAGASEP

1. Hollow-Fiber

Type M30 M40 M60 M80
Pressure Resistance: MPa 0.1 0.2 0.3 0.4
Active Temperature: °C -60～+200
Tensile Strength: kg/cm2 91
Maximum Elongation: % 370
O2 Permeations Rate:  cc/m2・min・atm 700 500 380 260

2. Permeability

(x 10-8∙cm/cm2∙sec∙cmHg)
N2 2.5 H2 5.7 Xe 22.8
CO 3.0 CH4 8.3 C3H8 25.0
Ne 3.1 Kr 10.0 H2S 88.4
He 3.2 C2H4 13.3 NO2 133.0
O2 5.0 CO2 18.5 H2O
(steam)		 318.0
NO 5.3 C2H6 16.0
Ar 5.3 NH3 20.9 CS2 793.0

* This data is a reference value for gas permeability comparison. It does not guarantee performance.

3-1. Module for Trial

Model M30-A M30-B M40-A M40-B M60-A M60-B M80-A M80-B
Material of Hollow-Fiber Silicone
Material of Housing Polycarbonate
Material for Seal Silicone
Outer-Diameter of Hollow-Fiber: mm 0.23 0.25 0.32 0.36
Inner-Diameter of Hollow-Fiber: mm 0.17 0.17 0.20 0.20
Number of Hollow-Fiber 3,000 6,000 3,000 6,000 3,000 6,000 2,500 5,000
Practical Membrane Area: m2 0.19 0.38 0.2 0.4 0.24 0.49 0.22 0.44
Pressure Resistance: MPa 0.1 0.2
Heat Resistance 120°C (Applicable under Autoclave process)
Model M20-A M20-B M40-A M40-B
Material of Hollow-Fiber Silicone
Material of Housing Polycarbonate
Material for Seal Silicone
Outer-Diameter of Hollow-Fiber: mm 0.21 0.25
Inner-Diameter of Hollow-Fiber: mm 0.17 0.17
Number of Hollow-Fiber 3,000 6,000 3,000 6,000
Practical Membrane Area: m2 0.27 0.54 0.3 0.6
Pressure Resistance: MPa 0.1 0.2
Heat Resistance 120°C (Applicable under Autoclave process)
Model M60-A M60-B M80-A M80-B
Material of Hollow-Fiber Silicone
Material of Housing Polycarbonate
Material for Seal Silicone
Outer-Diameter of Hollow-Fiber: mm 0.32 0.36
Inner-Diameter of Hollow-Fiber: mm 0.20 0.20
Number of Hollow-Fiber 3,000 6,000 2,500 5,000
Practical Membrane Area: m2 0.37 0.74 0.33 0.66
Pressure Resistance: MPa 0.1 0.2
Heat Resistance 120°C (Applicable under Autoclave process)

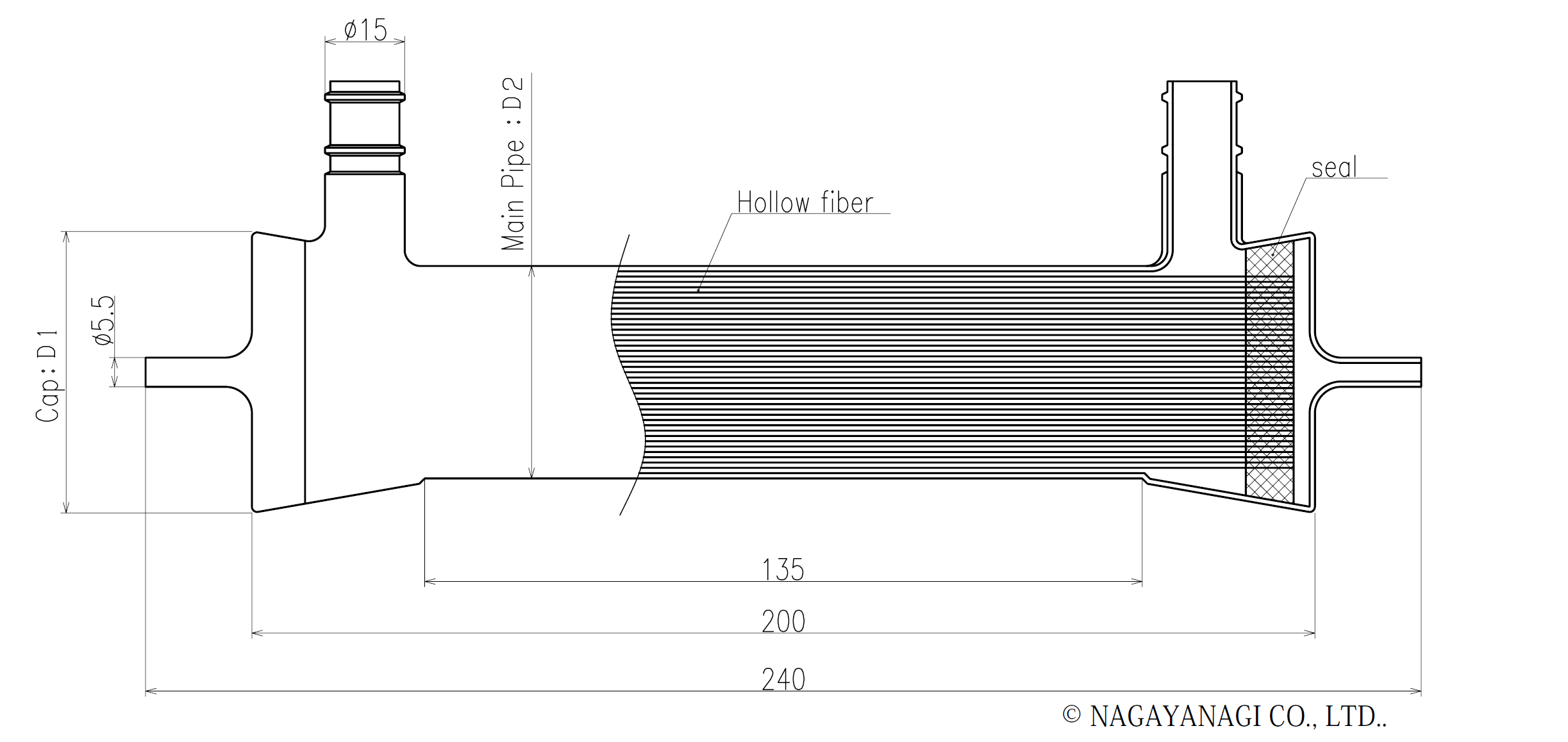

3-2. Schematic Drawing

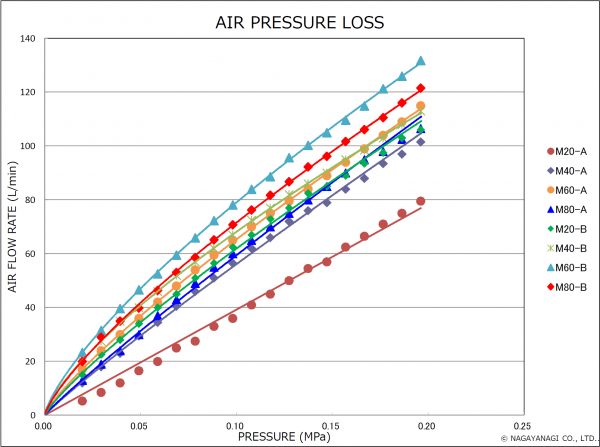

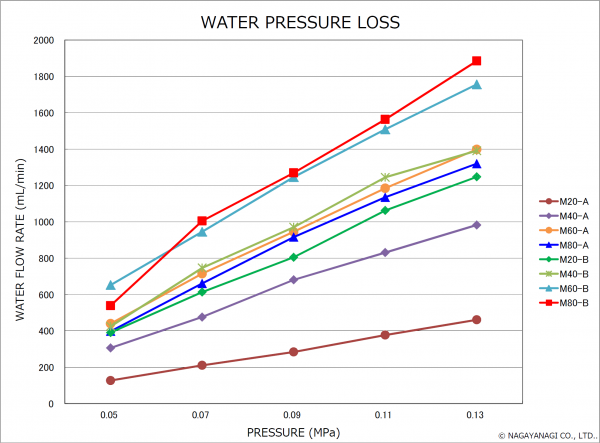

3-3. Pressure-loss Data

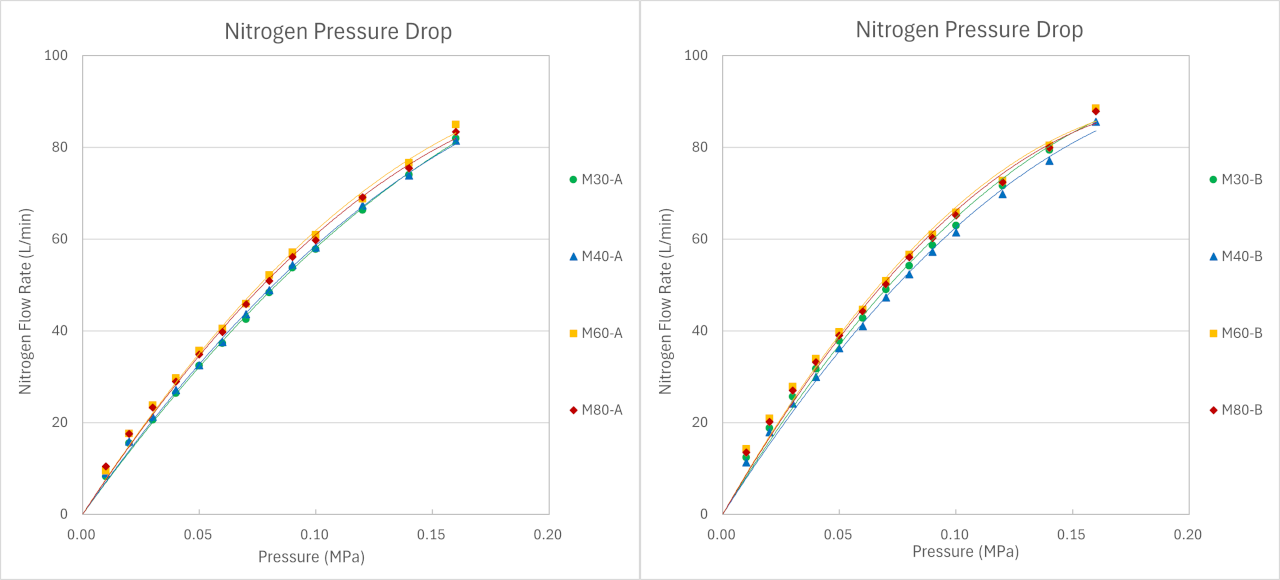

N2_pressure_drop

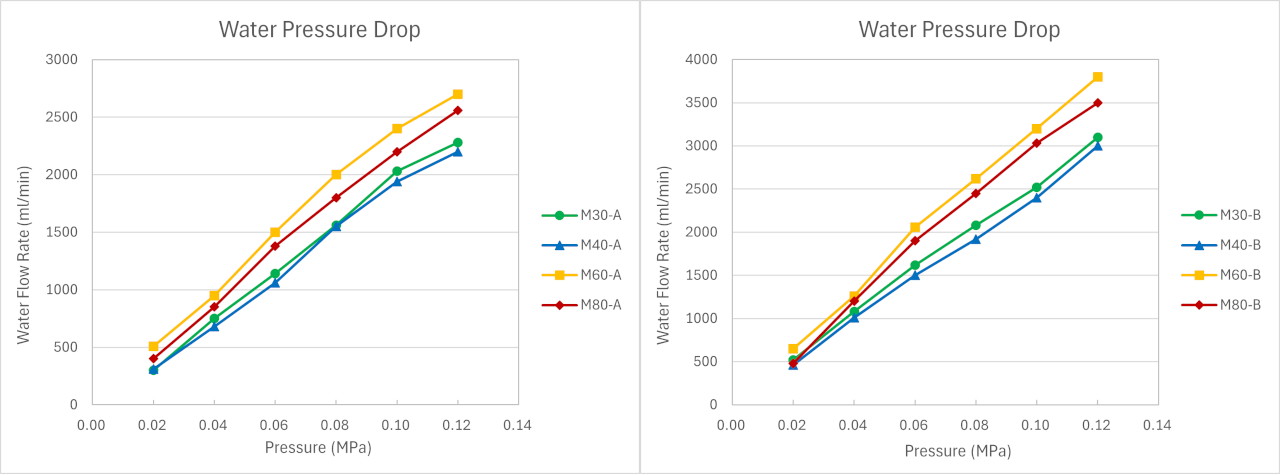

water_pressure_drop

4-1. Standard-Module for Actual-Mechanism

Model GS-M40-05S GS-M40-10S GS-M40-30S
Material of Hollow-Fiber Silicone
Material of Housing Aluminum or PVC
Material of Potting Silicone
Type of Hollow-Fiber M40 M40 M40
Number of Hollow-Fiber 38,500 49,000 104,500
Practical-Length: L1/mm 200 320 440
Practical-Area of Membrane: m2 4 10 30
Module Size: DxL/mm 140×310 160×436 230×594
Screw-size for Connection-Port PT-1/4 at Main-Pipe
PT-1/2 at Cap		 PT-3/8 at Main-Pipe
PT-1 at Cap		 PT-1/2 at Main-Pipe
PT-11/2 at Cap
Pressure Resistance(Mpa) 0.2
Heat Resistance(°C) 200(Al) / 80(PVC)

* NAGAYANAGI design NAGASEP according to customer’s request.

4-2. Schematic Drawing

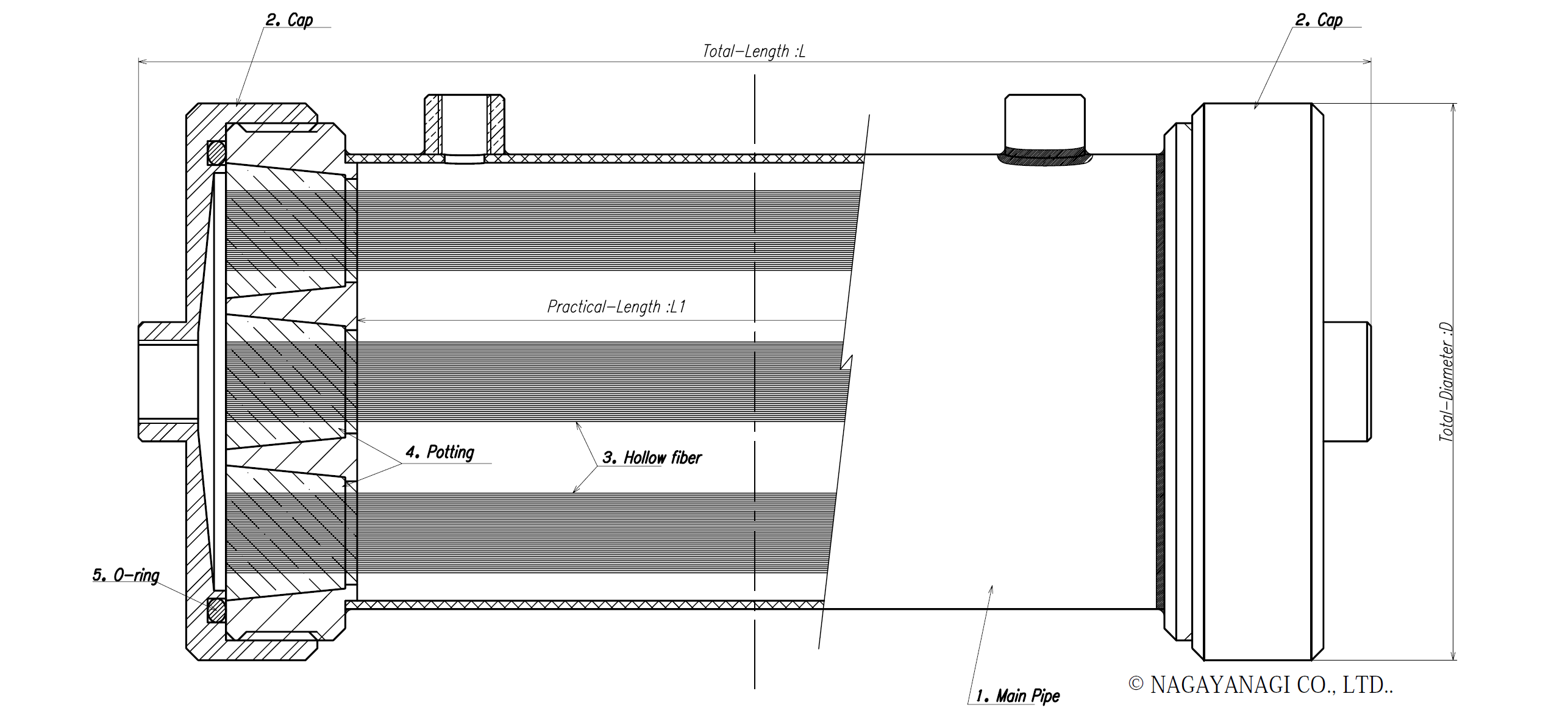

Schematic Drawing

4-3. Pressure-loss Data

pressure_drop
Contact Us
